How to deploy SurveilStar Web Monitor

SurveilStar Web Monitor is consisted of two modules:

Capture Engine Manager: To collect information from target computers
Web Viewer: To monitor and control Internet activities. Used by IT manager and supervisor only.

Situations & Solutions

Situation 1: Solution

Situation 2: Solution 1 & Solution 2

Situation 3: Solution

------------------------------------------------------------------------------------

Situation 1 and the solution

Situation:

Computers are connected to a network hub

Solution:

1) Install the Capture Engine Manager module on computers needed to be monitored

2) Install the Web Viewer module on IT manager’s and (or) supervisor’s computer(s)

--------------------------------------------------------------------------------------------------------------------------------------------------

Situation 2 and the solutions

Situation:

1) Computers are connected to a network switch.

2) And the LAN uses software gateway to connect to the Internet

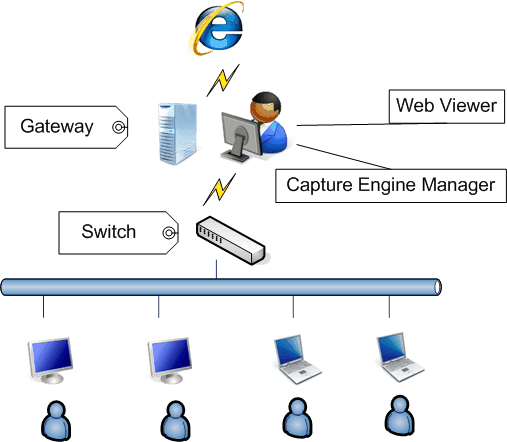

Solution 1:

Install both Capture Engine Manager and Web Viewer modules on the computer functions as gateway, proxy server or firewall.

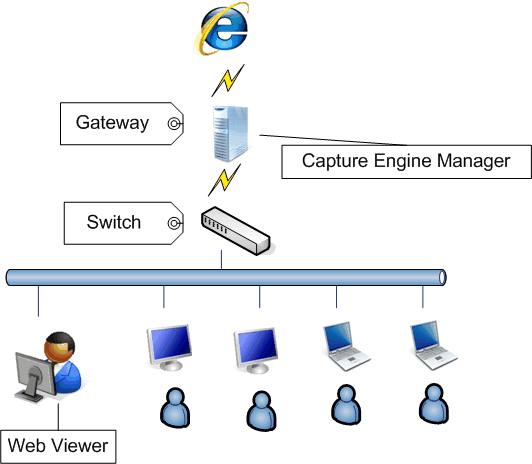

Solution 2:

1) Install the Capture Engine Manager module on the computer functions as gateway, proxy server or firewall.

2) Install the Web Viewer module on IT manager’s and (or) supervisor’s computer(s).

--------------------------------------------------------------------------------------------------------------------------------------------------

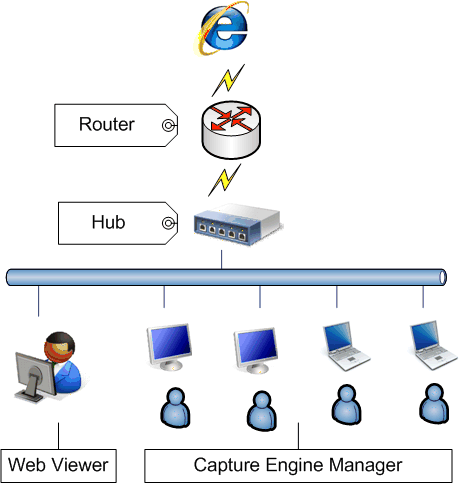

Situation 3 and the solution

Situation:

1) Computers are connected to a network switch

2) And the LAN uses hardware router to connect to the Internet

Solution:

1) Add a hub to connect the switch and the router

2) Connect computers needed to be monitored to the hub

3) Install the Capture Engine Manager module on computers needed to be monitored

4) Install the Web Viewer module on IT manager’s and (or) supervisor’s computer(s)

--------------------------------------------------------------------------------------------------------------------------------------------------

Terms and definitions used in this how-to article

LAN - A local area network (LAN) is a computer network covering a small physical area, like a home, office, or small group of buildings, such as a school, or an airport.

Gateway - A gateway is a network point that acts as an entrance to another network. Routers and other devices (such as any PC or server) can function as a gateway.

Proxy - Proxy server is a server (a computer system or an application program) that services the requests of its clients by forwarding requests to other servers.

Hub - A network hub or repeater hub is a device for connecting multiple computers together, making them act as a single network segment.

Switch - A network switch is a broad term for a computer networking device that connects network segments.

Router - A router is a device whose software and hardware are usually tailored to the tasks of routing and forwarding information.
